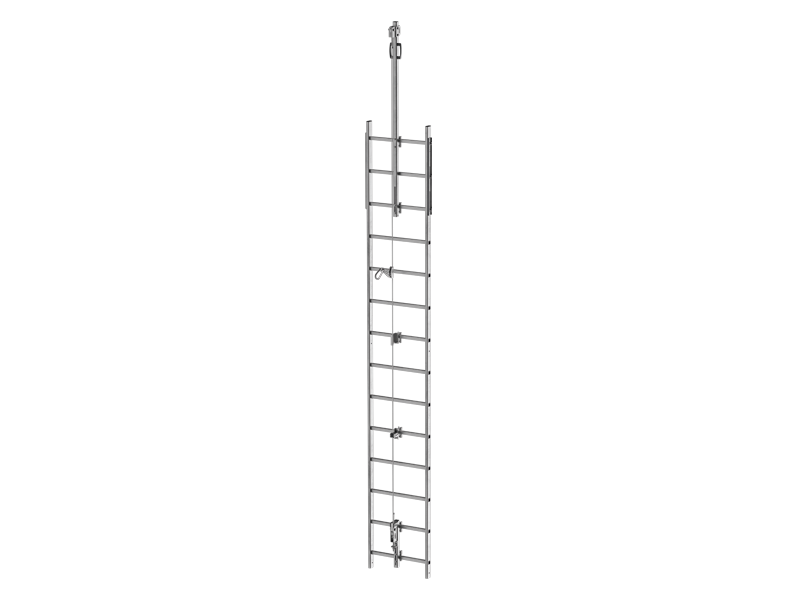

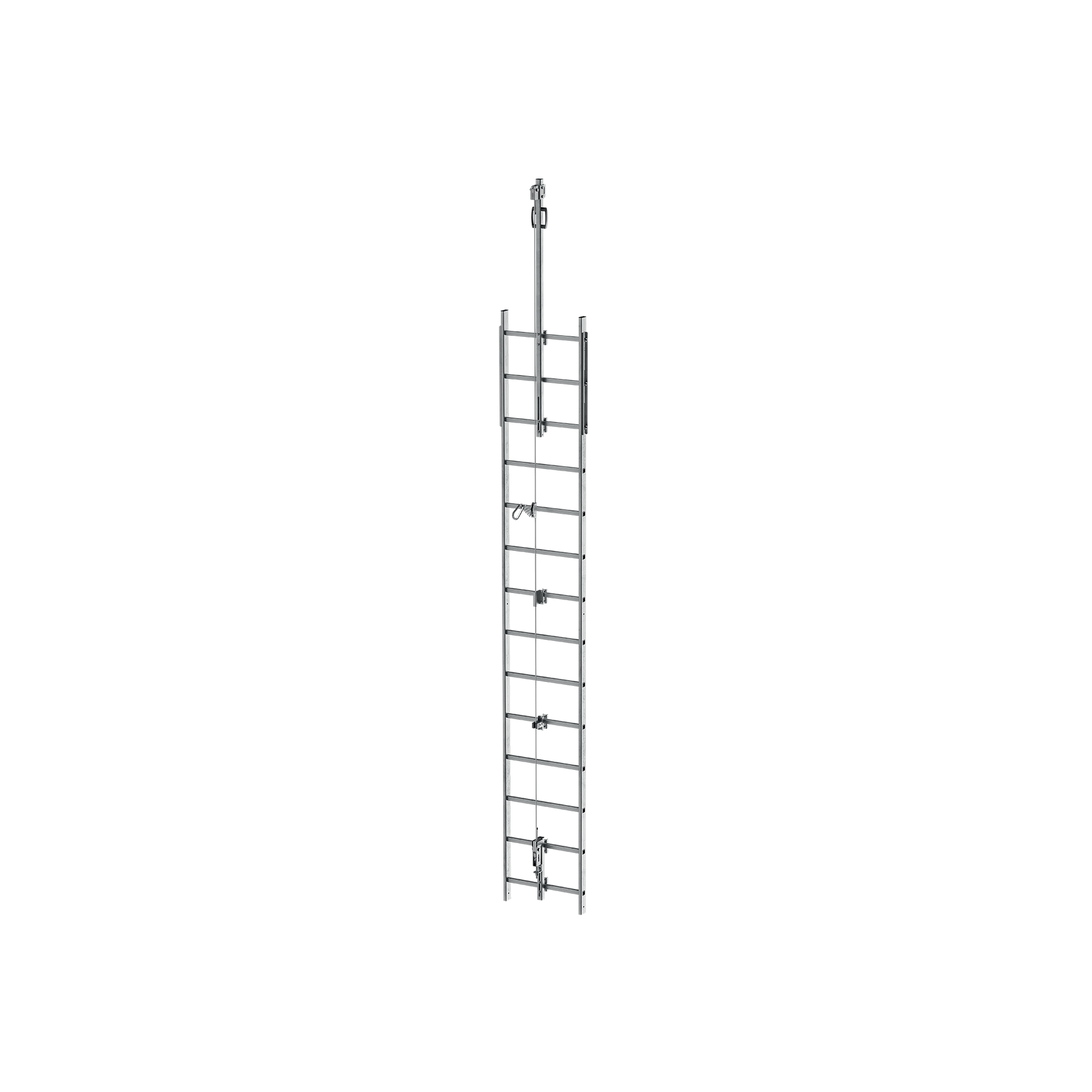

爬梯上的垂直生命线
VERTIGRIP ON LADDER

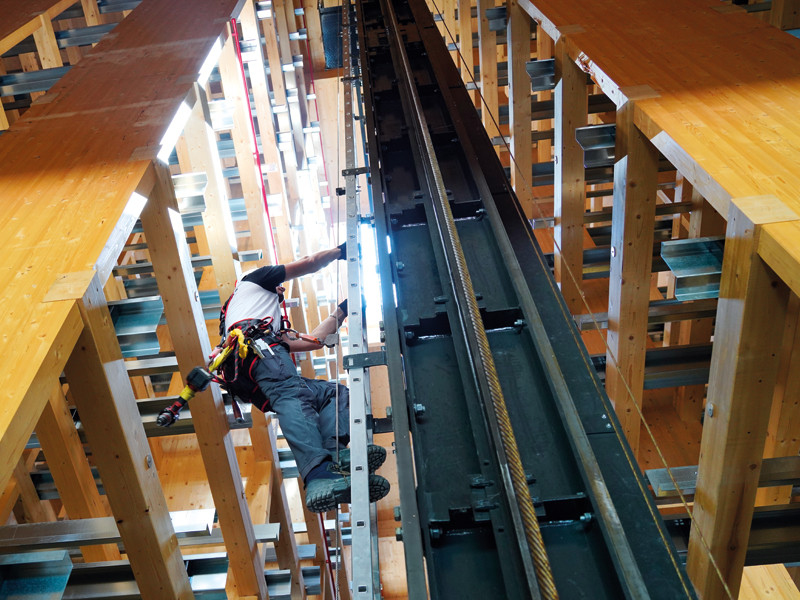

VERTIGRIP 垂直生命线是理想的防坠落系统，可确保在带或不带护笼的固定爬梯上工作的人员安全施工。极其轻巧耐用，采用耐腐蚀和耐用的铝合金制成。
视频
VERTIGRIP 是可保障在爬梯上的安全性的模块化垂直生命线。
VERTIGRIP 模块化系统提供范围广泛的配件系列，可以满足各种设计要求。安装快速，在固定爬梯上和直接在结构上安装只需数步。带集成减震器的钢丝索滑动装置，可绝对安全地控制上升和下降。 系统采用 AISI 316 不锈钢、AISI 304 不锈钢、EN AW 6082 铝合金制成，确保出色的耐腐蚀性。它可以在爬梯上偏心安装。
文件
技术数据表
|
|
|---|---|
认证
|
|
符合性声明（DOC）
|
|
安全规程、安装和使用说明 VERTIGRIP
|
|
安全规程、安装和使用说明 VERTSLIDE
|
|
符合性声明（DOC）
|
操作规程
| 安装手册 |
|---|
MAIN COMPONENTS OF THE VERTICAL LIFELINE
| CODE | description | material | peso netto
[Kg]
|
pcs. | |
|---|---|---|---|---|---|
| VERTSPEAR | set for vertical lifeline with clamps and Tensioner | stainless steel 1.4301 / AISI 304 EN AW 6082 aluminium | 1.62 | 1 | |
| CABLE | Ø8 7 x 7 | stainless steel - AISI316 | 0.26 | 1 | |
| VERTSLIDEPAS | removable sliding through fall arrest device with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 | 0.1 | 1 | |
| VERTSLIDE | removable guided type fall arrester with energy absorber for vertical lifeline | AISI 304 stainless steel grade 1.4301 EN AW 7075 T6 Aluminium | 0.4 | 1 | |
| VERTOP09 | upper anchor system (0,9 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 4.44 | 1 | |
| VERTOP17 | upper anchor system (1,7 m) for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 9.46 | 1 | |
| VERTBASE | lower anchor system for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 | 1.84 | 1 | |
| VERTINT | intermediate bracket for vertical lifeline on ladder | AISI 304 stainless steel grade 1.4301 – ABS | 0.64 | 1 | |
| VERTINTPAS1 | New | fixed pass-through intermediate for vertical lifeline | AISI 304 stainless steel grade 1.4301 | - | - |
| VERTINTPAS2 | New | removable pass-through intermediate element for vertical lifeline | AISI 304 stainless steel grade 1.4301 | - | - |
VERTICAL LIFELINE ACCESSORIES
| CODE | description | material | peso netto
[Kg]
|
pcs. |
|---|---|---|---|---|
| VERTHAND | set of handles for VERTOP17 | PA6 - stainless steel 1.4301 / AISI 304 | 0.05 | 1 |
| VERTSUP1 | additional reinforcement set for ladder | AISI 304 stainless steel grade 1.4301 | 0.5 | 1 |
TARGAVERTxy
| CODE | description | pcs. |
|---|---|---|
| TARGAVERTIT | Label plate for VERTIGRIP systems IT | 1 |
| TARGAVERTDE | Label plate for VERTIGRIP systems DE | 1 |
| TARGAVERTEN | Label plate for VERTIGRIP systems EN | 1 |
| TARGAVERTES | Label plate for VERTIGRIP systems ES | 1 |
| TARGAVERTFR | Label plate for VERTIGRIP systems FR | 1 |
| TARGAVERTPT | Label plate for VERTIGRIP systems PT | 1 |
| TARGAVERTRU | Label plate for VERTIGRIP systems RU | 1 |
| TARGAVERTCS | Label plate for VERTIGRIP systems CS | 1 |
| TARGAVERTDA | Label plate for VERTIGRIP systems DA | 1 |
| TARGAVERTEL | Label plate for VERTIGRIP systems EL | 1 |
| TARGAVERTET | Label plate for VERTIGRIP systems ET | 1 |
| TARGAVERTFI | Label plate for VERTIGRIP systems FI | 1 |
| TARGAVERTHR | Label plate for VERTIGRIP systems HR | 1 |
| TARGAVERTHU | Label plate for VERTIGRIP systems HU | 1 |
| TARGAVERTIS | Label plate for VERTIGRIP systems IS | 1 |
| TARGAVERTJA | Label plate for VERTIGRIP systems JA | 1 |
| TARGAVERTLT | Label plate for VERTIGRIP systems LT | 1 |
| TARGAVERTLV | Label plate for VERTIGRIP systems LV | 1 |
| TARGAVERTNL | Label plate for VERTIGRIP systems NL | 1 |
| TARGAVERTNO | Label plate for VERTIGRIP systems NO | 1 |
| TARGAVERTPL | Label plate for VERTIGRIP systems PL | 1 |
| TARGAVERTRO | Label plate for VERTIGRIP systems RO | 1 |
| TARGAVERTSK | Label plate for VERTIGRIP systems SK | 1 |
| TARGAVERTSL | Label plate for VERTIGRIP systems SL | 1 |
| TARGAVERTSV | Label plate for VERTIGRIP systems SV | 1 |
| TARGAVERTTR | Label plate for VERTIGRIP systems TR | 1 |
| TARGAVERTZH | Label plate for VERTIGRIP systems ZH | 1 |
| TARGAVERTAR | Label plate for VERTIGRIP systems AR | 1 |
